HDL Valves

Highlights

  • We stock all sizes up to 12″ for next day shipment
  • AIS / AWW compliant
  • Non-Clog & Non-Plug
  • Maintenance-free under normal conditions
  • Great for difficult abrasive and corrosive solids
  • Specialty coatings on request
Download HDL Flyer

Standard Features

  • Ductile Iron
  • Buna coated aluminum ball
  • Fusion bonded epoxy coating of valve
  • Pressure rated to 150 PSI
  • Simple bolt on cover for easy inspection and maintenance
  • O Ring seal on cover plate

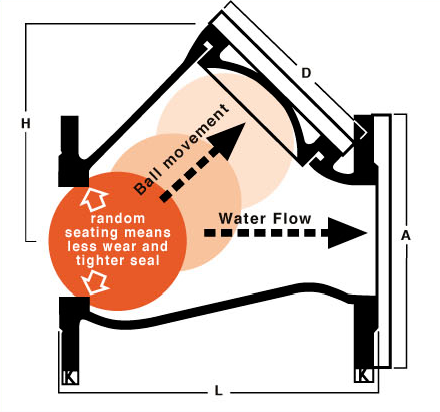

  • Ball is the only moving part
  • Flange to flange dimensions are to ANSI/ASME B16.10
  • AWWA / AIS compliant
  • Working pressure up to 145 PSI (10 bar)
  • 225 PSI hydrostatic shell test
  • Working temperature up to 176F (80C)
